Materials
Parts and Materials
| Component | Part |
|---|---|
| Flight controller | Pixracer Pro |
| Companion Computer | Raspberry Pi 4 (CM4) |
| Battery | 4s Lipo Battery |
| Power Module | PM06 V2 Power Module |
| UBEC | 3A 5V/12V Step Down |
| ESCs | 20A ESC Brushless |
| Motors | AE2207 V2 1860KV |
| Propellors | Ethix S5 FPV Propellers |
| Receiver | RadioMaster Nano Receiver |
| GPS | Micro M10 GPS |
Go to the detailed spreadsheet
Spherical Protection Cage
Quadrotor protection cage

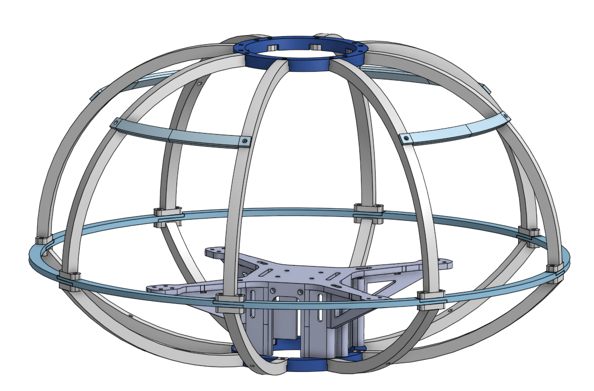

Parametric structure of the cage
View the CAD files in Onshape
Parts

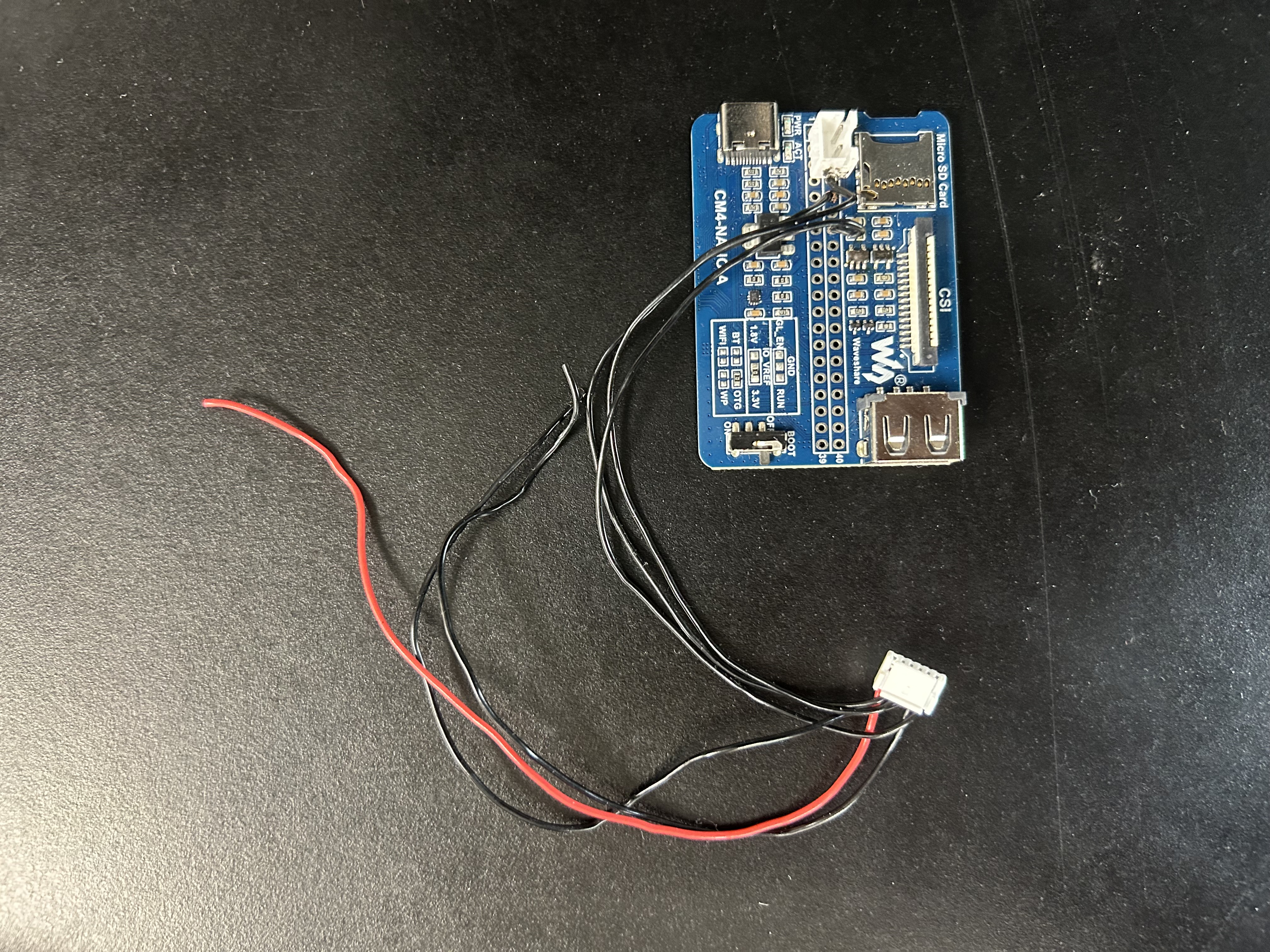

Nano connection board for RPi

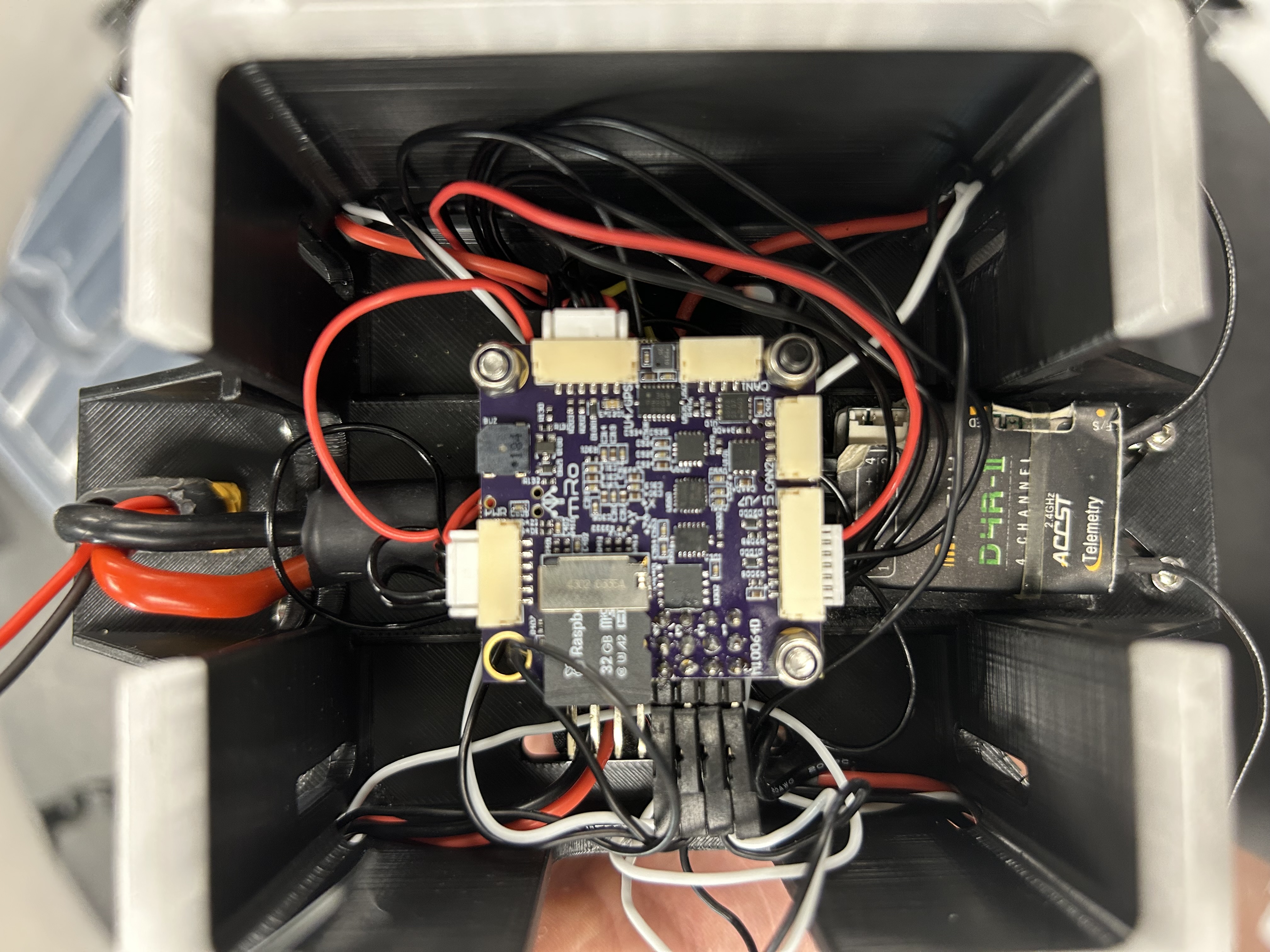

Pixrace Pro flight controller

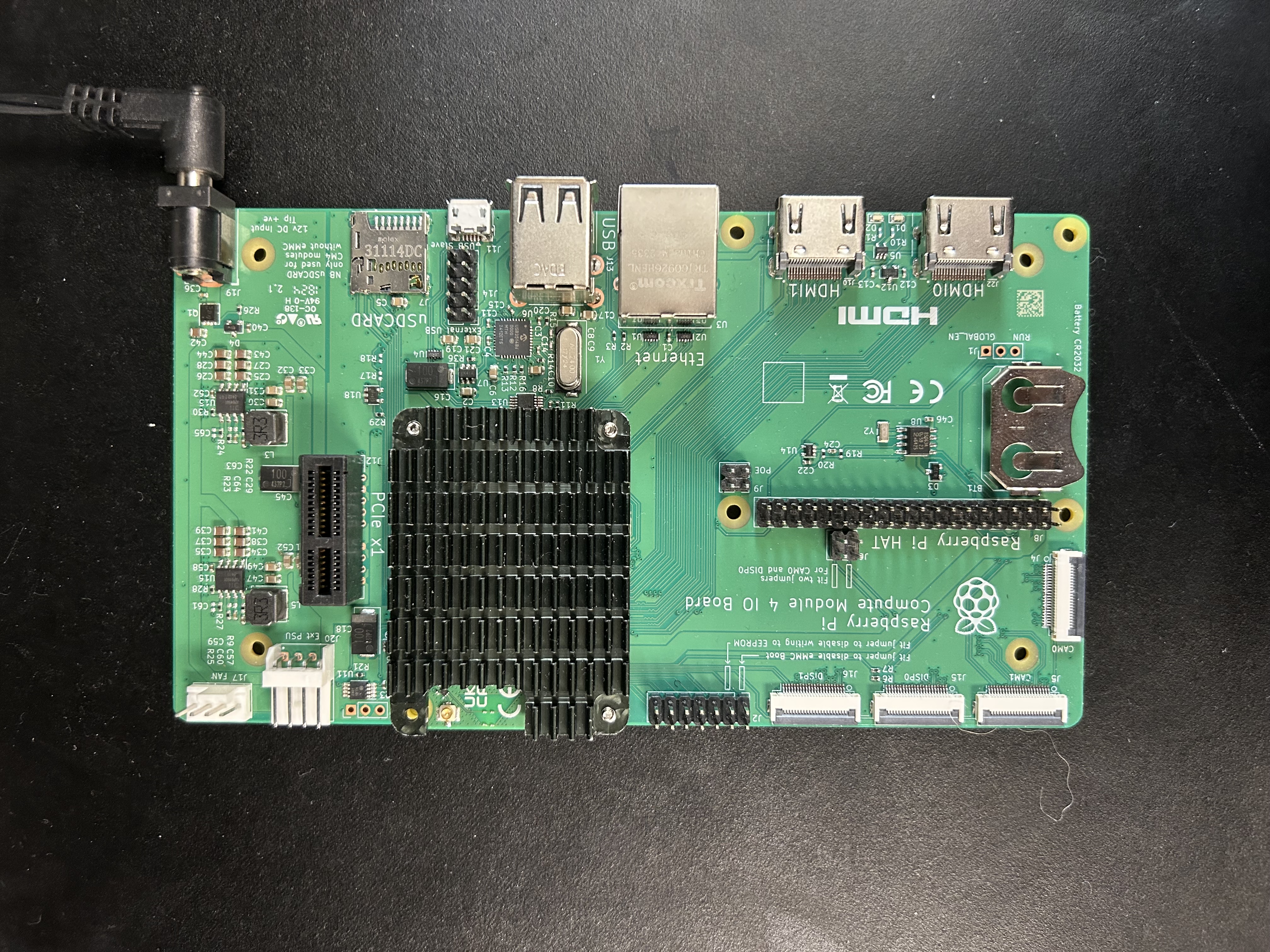

RPi IO board

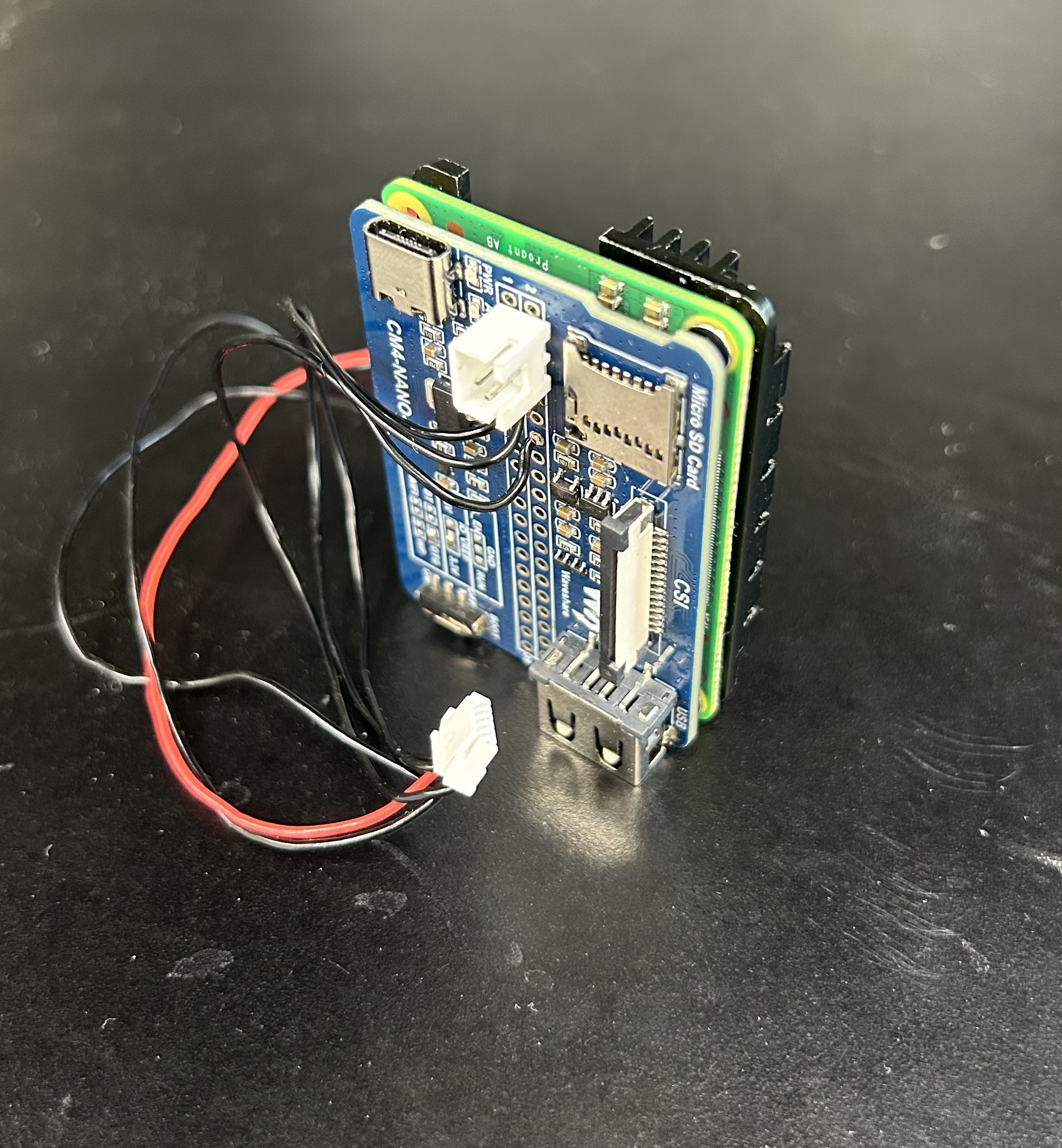

Assembled RPi with the nano board and heatsink

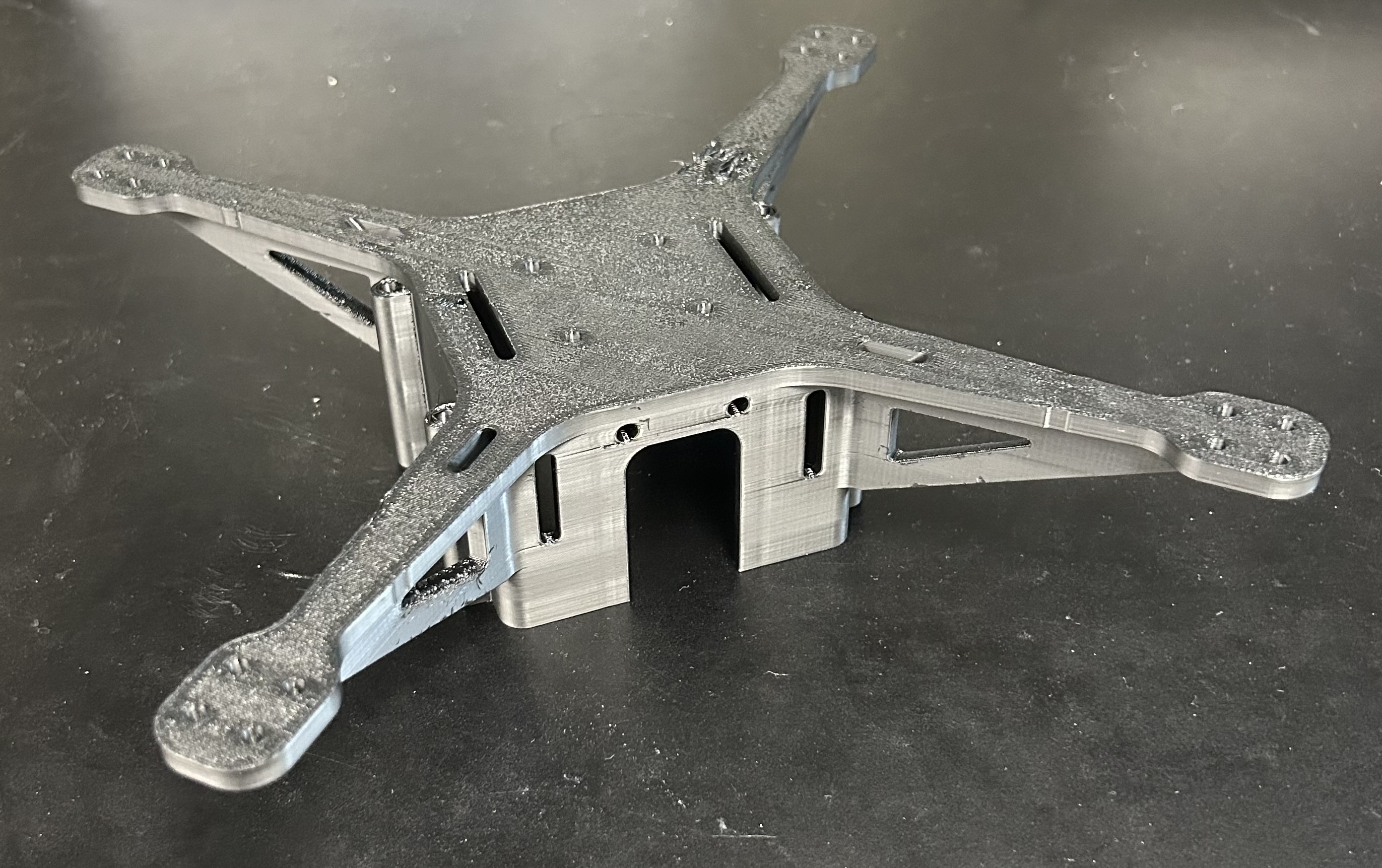

3D printed quadrotor frame

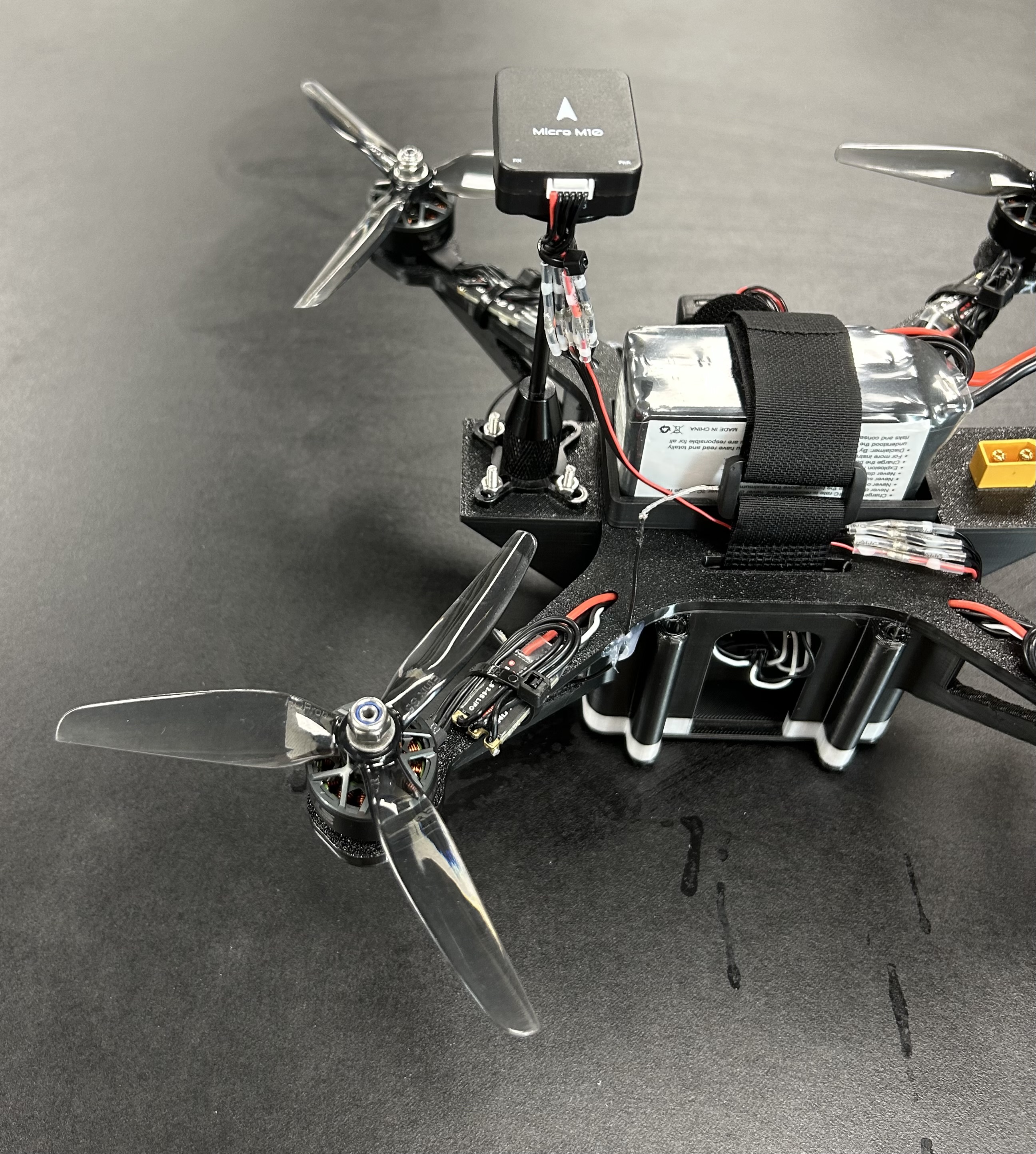

Fully assembled quadrotor

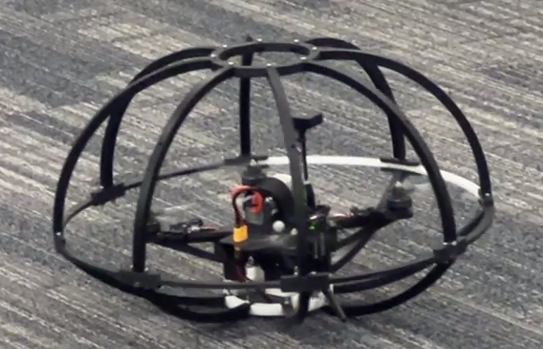

Quadrotor with the protection cage
