LangGraph Agents

This page explains what LangGraph is and how to use the drone control agent located in the ROS2 package called ai_agent.

Learn LangGraph

For a full tutorial, use the Introduction to LangGraph created by LangChain Academy

Drone Control Agent

Natural language commands are proccessed by the LangGraph agent by invoking LLM calls to the Ollama model. The agent is directed to which ROS2 tool call is needed to correctly control the quadrotor.

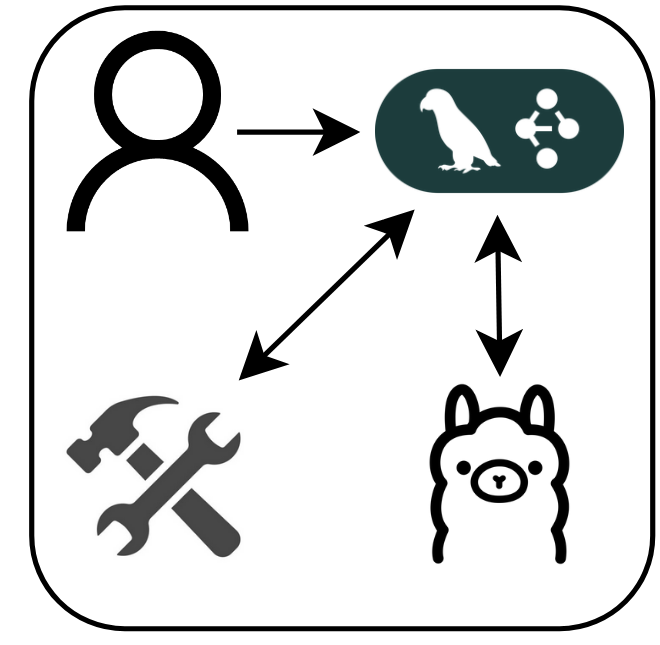

Name	Purpose
User	Represents natural language commands from a user.
LangGraph	A library for building stateful, multi-actor applications with LLMs, used here as the framework for the AI agent.
Tools	A list of ROS2 tools provided to the AI agent to control the quadrotor.
Ollama	A tool for running large language models (LLMs) locally.

Architecture Overview

The agent is designed to work alongside the existing PX4 simulation infrastructure:

graph TB
    subgraph "Terminal 1"
        PROC[processes.py] --> MICRO[MicroXRCEAgent<br/>UDP 8888]
        PROC --> GAZ[Gazebo PX4 SITL]
    end
    subgraph "Terminal 2 (Optional)"
        CTRL[control.py<br/>Keyboard Input]
    end
    subgraph "Terminal 3"
        OLLAMA[Ollama Server<br/>LLM Service]
    end
    subgraph "Terminal 4"
        USER[User Commands<br/>Natural Language] --> AGENT[agent.py<br/>LangGraph]
        AGENT --> |LLM Queries| OLLAMA
        OLLAMA --> |Tool Selection| AGENT
    end
    subgraph "ROS2 Nodes"
        CTRL --> |/offboard_velocity_cmd| VEL[velocity_control.py]
        VEL --> |State Machine| OFF[Offboard Mode]
        OFF --> |/fmu/in/trajectory_setpoint| MICRO
        AGENT --> |Direct Commands| TOOLS[drone_tools.py]
        TOOLS --> |/fmu/in/vehicle_command| MICRO
        TOOLS --> |/fmu/in/trajectory_setpoint| MICRO
    end
    subgraph "Visualization"
        VIZ[visualizer.py] --> RVIZ[RViz2]
    end

    MICRO <--> GAZ
    GAZ --> |/fmu/out/*| VIZ
    GAZ --> |/fmu/out/*| AGENT

    style AGENT fill:#f9f,stroke:#333,stroke-width:4px
    style TOOLS fill:#f9f,stroke:#333,stroke-width:4px
    style OLLAMA fill:#f9f,stroke:#333,stroke-width:4px

`ai_agent`

In this package, the px4_offboard simulation is expanded to interface with an AI Agent allowing for natural language interaction with the quadrotor. This is implented with ROS2, LangChain, LangGraph, and Ollama.

Set-up

First make sure you have downloaded ollama and pulled the model you wish to use

Create a python virtual environment for the required dependencies

# Navigate to your ai_agent package
cd src/ai_agent

# Create a virtual environment
python3 -m venv venv

# Activate it
source venv/bin/activate

# Install dependencies
pip install langgraph langgraph-prebuilt langchain-core  langchain_ollama

Instructions to run the agent

To run the agent as a python file (without ROS2) paste the following commands in a terminal (adjust the file paths as needed)

cd /ros2_workspaces/3d_printed_quad/src/ai_agent
source venv/bin/activate
source ~/ros2_workspaces/3d_printed_quad/install/setup.bash
export PYTHONPATH=$PYTHONPATH:/ros2_workspaces/3d_printed_quad/src/ai_agent

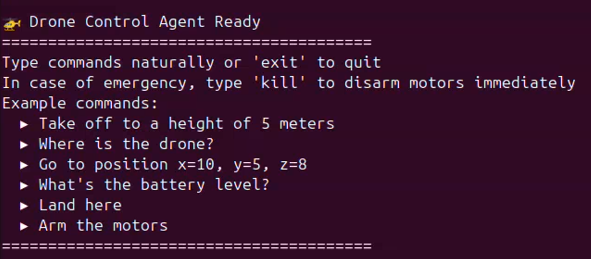

python3 ai_agent/agent.py

To run the agent with the launch files, build the ROS2 workspace and source the environment

colcon build
source install/setup.bash

Then you can start the launch file of your choice

ros2 launch ai_agent <package_name>

Launch File	Description
`test_agent.launch.py`	Launch only the drone control agent
`offboard_agent_control.launch.py`	Launch the drone control agent with a Gazebo simulation
